Flake ice machine

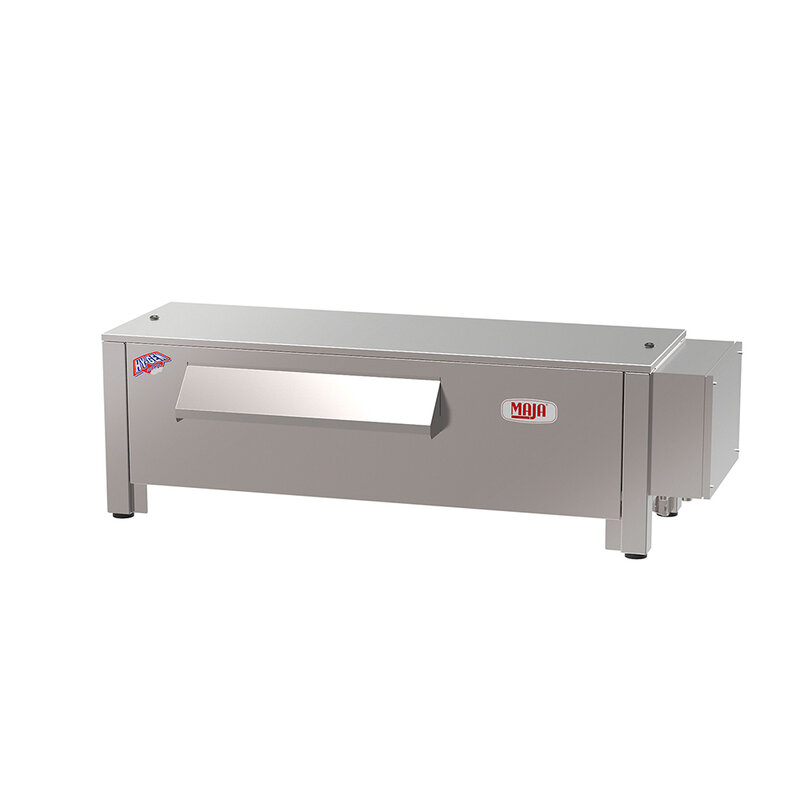

Flake ice machine (rotating evaporator) without condensing unit for direct operation with carbon dioxide CO2 / R744 with a R744 multicompressor refrigeration unit.
Ice capacity 500 kg / 24 h
Ice capacity 1000 kg / 24 h
Ice capacity 1300 kg / 24 h
Ice capacity 1900 kg / 24 h
Ice capacity 2500 kg / 24 h
Ice capacity 3000 kg / 24 h
Ice capacity 3800 kg / 24 h
Ice capacity 7600 kg / 24 h
Ice capacity 11400 kg / 24 h
Ice capacity 15200 kg / 24 h
The RVH-CO2 flake ice machine range is designed for refrigeration projects targeting sustainability and environmental safety, as CO2 belongs to the natural refrigerants.
HY-GEN sanitation by Maja
- This model carries the HY-GEN hygiene label and thus offers ideal conditions for thorough cleaning by hand and also fully automatically.
- HY-GEN flake ice machines from MAJA are designed to enable the production of flake ice under particularly hygienic conditions. The core element is the evaporator tray, which can be removed in a few simple steps and is designed to be thoroughly cleaned with minimum effort.
- In addition, the evaporator is free of fixed built-in parts, so that nothing stands in the way of thorough cleaning.
- For water supply, MAJA relies on DVGW-compliant technology.
- Cleaning is even more convenient, faster and safer if the ice maker is equipped with Maja-SCS, the patented fully automatic evaporator self-cleaning system.
Details
RVH 400 CO2
Power per 24 h: 500 KgConnecting power: 0.28 kWVoltage: 400 V / 50 HzLxBxH: 512x1185x525 mmWeight: 85 Kg
RVH 800 CO2
Power per 24 h: 1000 KgConnecting power: 0.28 kWVoltage: 400 V / 50 HzLxBxH: 512x1345x525 mmWeight: 125 Kg
RVH 1000 CO2
Power per 24 h: 1300 KgConnecting power: 0.28 kWVoltage: 400 V / 50 HzLxBxH: 512x1545x525 mmWeight: 145 Kg
RVH 1500 CO2
Power per 24 h: 1900 KgConnecting power: 0.28 kWVoltage: 400 V / 50 HzLxBxH: 512x1695x525 mmWeight: 160 Kg
RVH 2000 CO2
Power per 24 h: 2500 KgConnecting power: 0.28 kWVoltage: 400 V / 50 HzLxBxH: 512x1695x525 mmWeight: 160 Kg
RVH 2500 CO2
Power per 24 h: 3000 KgConnecting power: 0.28 kWVoltage: 400 V / 50 HzLxBxH: 512x1695x525 mmWeight: 160 Kg
RVH 3000 CO2
Power per 24 h: 3800 KgConnecting power: 0.34 kWVoltage: 400 V / 50 HzLxBxH: 675x1735x525 mmWeight: 220 Kg
RVH 6000 CO2
Power per 24 h: 7600 KgConnecting power: 0.61 kWVoltage: 400 V / 50 HzLxBxH: 1450x1860x586 mmWeight: 320 Kg
RVH 9000 CO2
Power per 24 h: 11400 KgConnecting power: 0.61kW+0.34kWVoltage: 400 V / 50 HzLxBxH: 1456x1863x1572 mmWeight: 600 Kg
RVH 12000 CO2
Power per 24 h: 15200 KgConnecting power: 0.61kW+0.61kWVoltage: 400 V / 50 HzLxBxH: 1456x1863x1572 mmWeight: 700 Kg
